Brake Discs Girodisc A1-034 Front Audi RS4 (B8), RS5 (8F, 8T3), RS6 / RS6 Plus (C5), R8 (42, 4S9, 4S3) - Pair 380x34

Girodisc A1-034
Pair of two-piece floating front brake rotors

Girodisc is an American company founded in 2003 in California and based since 2007 in Bellingham, Washington, where it designs and builds two-piece floating brake rotors for sports cars, supercars and track cars. The iron castings for the friction rings are poured in the USA and every part is machined and inspected in the Girodisc factory.

The cast iron friction ring has curved internal vanes that pump air outwards and bring temperatures down quickly, and it is joined to the 6061-T6 aluminium hat with floating steel drive pins. The ring can therefore expand freely with heat, self-centres between the pads and resists warping and judder even after many laps. Compared with the original rotor it also reduces unsprung weight.

They are the choice of many enthusiasts who take their car to track days: they replace the original rotors, including factory-fitted Brembo or other brands, and work with the standard calipers. The first purchase is the pair of complete rotors with hats; once the ring is worn, often after more than one season depending on use, only the pair of replacement rings is needed (D1 series for the front, D2 for the rear).

Diameter: 380 mm
Thickness: 34 mm
Minimum thickness: 32 mm
Height: 53 mm
OE rotor diameter: 365 mm
Finish: curved slots
Construction: two-piece floating
Ring material: cast iron
Package contents: 2 complete rotors with hats (left A1-034SL and right A1-034SR)

Pair code: A1-034
Part numbers: A1-034SL, A1-034SR
Replacement rings: D1-034SL, D1-034SR

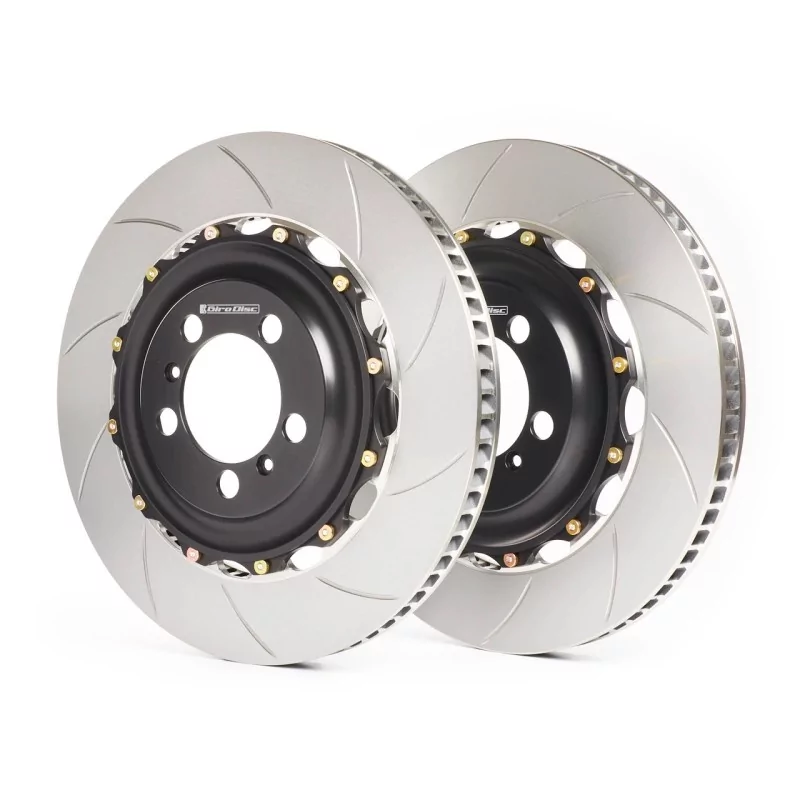

Images for reference only: the photo is a generic Girodisc picture; hat shape, drilling and ring pattern vary by application. The technical drawing shows the correct orientation of the left and right rotors.

When the ring is worn, here is the matching pair of Girodisc D1-034 replacement rings. To complete the system see the Girodisc brake pads and all Girodisc rotors for Audi.

Availability: usually shipped within 3-4 working days from the European warehouse; codes not in stock are delivered within about 15 days. Contact us for up-to-date availability.

Compatibility:
Audi RS4 Quattro Avant 4.2 (B8) 2012-2015
Audi RS5 Quattro Cabriolet 4.2 (8F) 2012-2015
Audi RS5 Quattro Coupe 4.2 (8T3) 2010-2015
Audi RS6 Quattro 4.2 Twin Turbo (C5) 2002-2004
Audi RS6 Plus Quattro Avant 4.2 Twin Turbo (C5) 2004-2005
Audi RS6 Quattro Avant 4.2 Twin Turbo (C5) 2002-2004
Audi R8 GT Quattro Spyder 5.2 (42) 2011-2015
Audi R8 Quattro Spyder 4.2 (42) 2011-2015
Audi R8 Quattro Spyder 5.2 (42) 2010-2015
Audi R8 GT Quattro 5.2 (42) 2010-2015
Audi R8 Plus Quattro 5.2 (42) 2012-2015
Audi R8 Quattro 4.2 (42) 2007-2011
Audi R8 Quattro 4.2 (42) 2011-2015
Audi R8 Quattro 5.2 (42) 2009-2015
Audi R8 Quattro Spyder 5.2 (4S9) 2016-2024
Audi R8 RWS Spyder 5.2 (4S9) 2017-2018
Audi R8 Quattro 5.2 (4S3) 2015-2024
Audi R8 RWS 5.2 (4S3) 2017-2018
Lamborghini Gallardo 5.0 2003-2008
Lamborghini Gallardo LP550-2 5.2 2010-2013
Lamborghini Gallardo LP560-4 5.2 2008-2013
Lamborghini Gallardo Superleggera 5.0 2007-2008
Lamborghini Gallardo Spyder 5.0 2006-2008
Lamborghini Gallardo Spyder LP550-2 5.2 2011-2013
Lamborghini Gallardo Spyder LP560-4 5.2 2009-2013
Lamborghini Huracan Evo 5.2 2019-2023
Lamborghini Huracan LP580-2 5.2 2015-2020
Lamborghini Huracan Spyder Evo 5.2 2019-2024
Lamborghini Huracan Spyder LP580-2 5.2 2017-2020

List supplied by the European Girodisc distributor. If your car is not listed or you have any doubt, contact us before ordering.
