Brake Discs Pagid RBD ED380300401 Disc Ring 380x30 Right

Pagid RBD ED380300401
Disc Ring Pagid Racing RBD 380 x 30 mm - Right

Pagid Racing is the racing brand of the German TMD Friction group based in Essen: for more than 30 years it has developed brake pads, discs and brake fluid for motorsport, with compounds engineered in Germany and tested on circuits all over the world.

Pagid Racing RBD discs are developed together with Pagid pads as one brake team: low weight, optimised cooling and crack resistance. The disc is made of three matched parts: the ventilated disc ring, the hard-anodised aluminium mounting bell and the floating bobbin set, which eliminates wear on the bell and allows it to be reused many times. The groove pattern was developed with Pagid Racing pads for the best performance and wear, and the ventilation chambers optimise heat exchange. The modular design allows, in most cases, either the lightweight version (sprint races and rally) or the endurance version to be fitted to the same bell.

Part number: ED380300401
Side: Right
Axle: rear
Outside diameter: 380 mm
Thickness: 30 mm
Inside diameter: 280 mm
Hat interface PCD: 12 x 260 mm
Max. pad depth: 50 mm
Vent opening: 17 mm
Weight: 6.25 kg
Bobbin set: SA100120301
Package contents: 1 disc ring

The ring is sold individually: one axle needs the left and the right ring (ED380300301 and ED380300401).

Matching components: bobbin set SA100120301

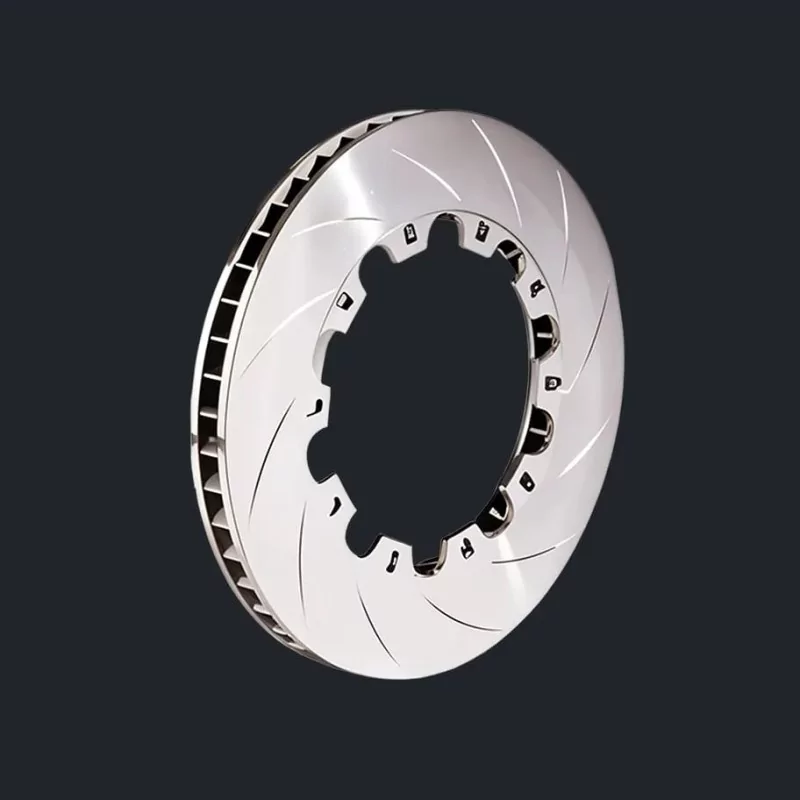

Reference photo of the Pagid Racing RBD range: actual dimensions listed above.

Product intended for track and competition use.

Compatibility:
Porsche 982 Cayman GT4 Clubsport - rear

Applications from the official Pagid Racing 2026 catalogue; other applications on request, contact us.
