Pagid RBD ED378340101
Disc Ring Pagid Racing RBD 378 x 34 mm - Left
Pagid Racing is the racing brand of the German TMD Friction group based in Essen: for more than 30 years it has developed brake pads, discs and brake fluid for motorsport, with compounds engineered in Germany and tested on circuits all over the world.
Pagid Racing RBD discs are developed together with Pagid pads as one brake team: low weight, optimised cooling and crack resistance. The disc is made of three matched parts: the ventilated disc ring, the hard-anodised aluminium mounting bell and the floating bobbin set, which eliminates wear on the bell and allows it to be reused many times. The groove pattern was developed with Pagid Racing pads for the best performance and wear, and the ventilation chambers optimise heat exchange. The modular design allows, in most cases, either the lightweight version (sprint races and rally) or the endurance version to be fitted to the same bell.
Part number: ED378340101
Side: Left
Axle: front
Outside diameter: 378 mm
Thickness: 34 mm
Inside diameter: 268 mm
Hat interface PCD: 12 x 247.65 mm
Max. pad depth: 54 mm
Vent opening: 19 mm
Weight: 7.44 kg
Bobbin set: SA100120301
Version: sprint version (lightweight, for sprint races and rally)
Package contents: 1 disc ring
The ring is sold individually: one axle needs the left and the right ring (ED378340101 and ED378340201).
Matching components: mounting bell EB378120101, bobbin set SA100120301

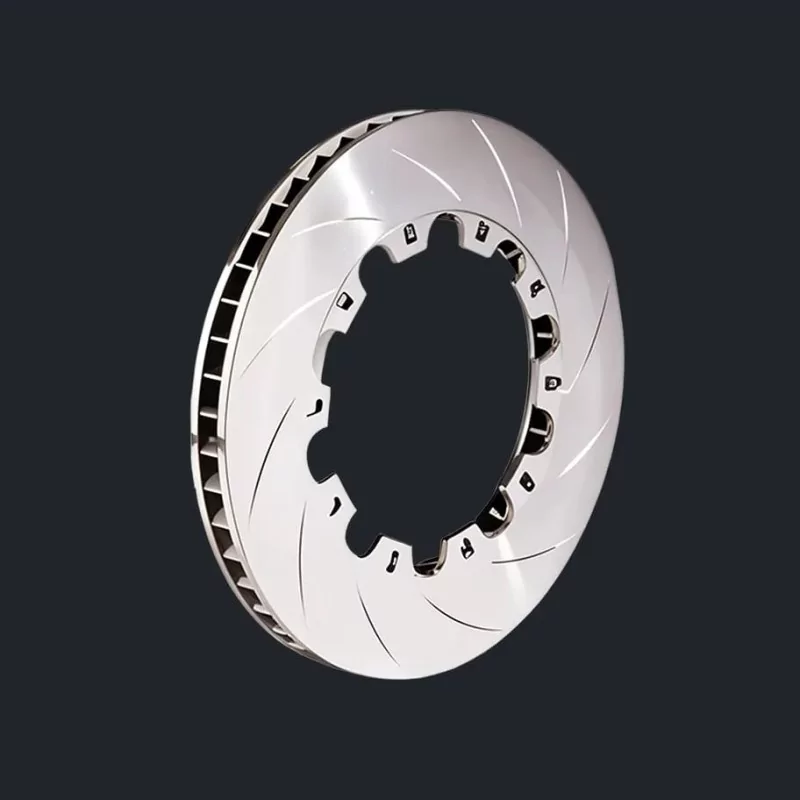

Reference photo of the Pagid Racing RBD range: actual dimensions listed above.
Product intended for track and competition use.
Compatibility:
Alfa Romeo Giulietta TCR - front
Audi RS3 LMS TCR / TT Cup - front
Cupra Leon [Mk3] Cupra TCR - front
Lada Vesta Sport TCR - front
Opel Astra TCR - front
Renault Mégane RS TCR - front
Volkswagen Golf GTI TCR - front
Applications from the official Pagid Racing 2026 catalogue; other applications on request, contact us.
See all Pagid Racing RBD brake discs and Pagid brake pads.
