Brake Discs Pagid RBD EB378120101 Brake Disc Mounting Bell

Pagid RBD EB378120101
Brake Disc Mounting Bell Pagid Racing RBD - front

Pagid Racing is the racing brand of the German TMD Friction group based in Essen: for more than 30 years it has developed brake pads, discs and brake fluid for motorsport, with compounds engineered in Germany and tested on circuits all over the world.

Pagid Racing RBD discs are developed together with Pagid pads as one brake team: low weight, optimised cooling and crack resistance. The disc is made of three matched parts: the ventilated disc ring, the hard-anodised aluminium mounting bell and the floating bobbin set, which eliminates wear on the bell and allows it to be reused many times. The groove pattern was developed with Pagid Racing pads for the best performance and wear, and the ventilation chambers optimise heat exchange. The modular design allows, in most cases, either the lightweight version (sprint races and rally) or the endurance version to be fitted to the same bell.

Part number: EB378120101
Axle: front
Ring PCD: 12 x 247.65 mm
Bolt pattern: 5 x 112
Centre bore: 65 mm
Offset: 8.1 mm
Thickness: 6 mm
Bobbin set: SA100120301

Matching components: ED378340101, ED378340201, ED378340701, ED378340801, SA100120301

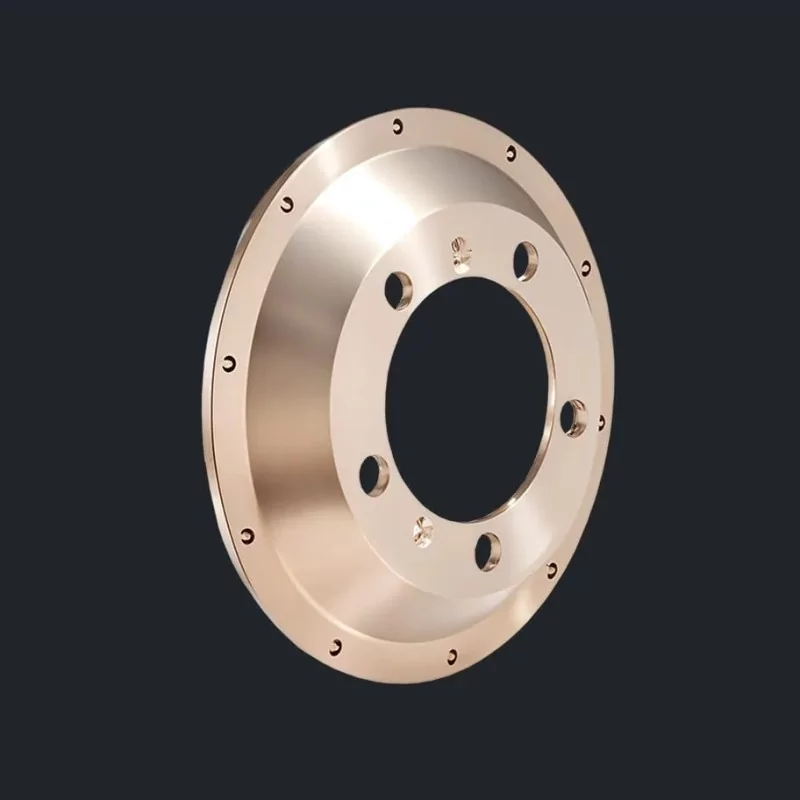

Reference photo of the Pagid Racing RBD range: actual dimensions listed above.

Product intended for track and competition use.

Compatibility:
Audi RS3 LMS TCR / TT Cup - front
Cupra Leon [Mk3] Cupra TCR - front
Volkswagen Golf GTI TCR - front

Applications from the official Pagid Racing 2026 catalogue; other applications on request, contact us.

See all Pagid Racing RBD brake discs and Pagid brake pads.
