Pagid Racing E2016RSL1E
Brake pads racing RSL 1E - shape 2016
Pagid Racing is the racing brand of the German TMD Friction group based in Essen: for more than 30 years it has developed brake pads, discs and brake fluid for motorsport, with compounds engineered in Germany and tested on circuits all over the world.
The RSL family is Pagid Racing's endurance range: wide operating temperature window, very good modulation, slightly progressive friction during the stop, low heat conductivity, disc friendly and works very well with ABS. Because of the pad colour many people simply call them "Pagid yellow".
The RSL 1E is the evolution of RSL 1 with even longer life, suited to the longest GT endurance races. It keeps stable friction, low pad and disc wear, low pedal effort and good modulation.
Part number: E2016RSL1E
Shape: 2016
Compound: RSL 1E
Thickness: 30 mm
Dimensions (length x width): 164 x 66 mm
Backplate thickness: 5 mm
Pagid note: Alcon, AP Racing, Brembo
Package contents: pad set for one axle
Same shape, other compounds: E2016RSL2E, E2016RST2E

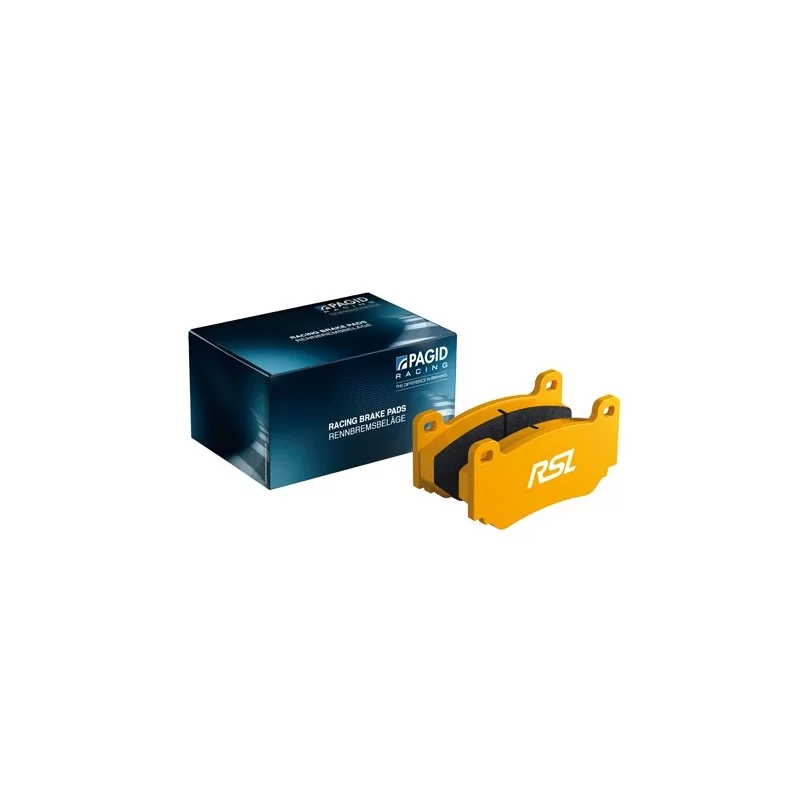

Images: the first photo shows the RSL family box and colour and is for reference only; the actual outline is the one in the shape 2016 drawing.
Race pads must be bedded in before track use: follow Pagid's bedding procedure or ask us how to do it. Product intended for track and competition use.
Compatibility:
Brake calipers
Alcon CAR94, CAR12 [4494]
AP Racing CP5820 D62
Brembo NASCAR front 07.7614 [type "B21" family]
List taken from the official Pagid Racing 2026 catalogue. Road cars listed refer to the standard brake system unless stated; for race cars the fitted caliper is what counts. If in doubt, contact us before ordering.
