Girodisc D1-171
Pair of replacement rings for front brake rotors
Girodisc is an American company founded in 2003 in California and based since 2007 in Bellingham, Washington, where it designs and builds two-piece floating brake rotors for sports cars, supercars and track cars. The iron castings for the friction rings are poured in the USA and every part is machined and inspected in the Girodisc factory.
This item is the cast iron replacement ring (also called rotor ring or friction ring) for Girodisc A1-171 rotors: it fits onto the Girodisc hat already on the car and comes with new drive pins and assembly instructions. It is not compatible with hats from other brands or with factory two-piece rotors.
If you run Girodisc rotors on track days you do not need to buy complete rotors again: when the ring reaches its minimum thickness, often after more than one season depending on use, you replace only this pair of rings and keep the hats already fitted.
Diameter: 340 mm
Thickness: 30 mm
Minimum thickness: 28 mm
OE rotor diameter: 340 mm
Finish: curved slots
Ring material: cast iron
Package contents: 2 friction rings (left D1-171SL and right D1-171SR) with new drive pins
Pair code: D1-171
Part numbers: D1-171SL, D1-171SR

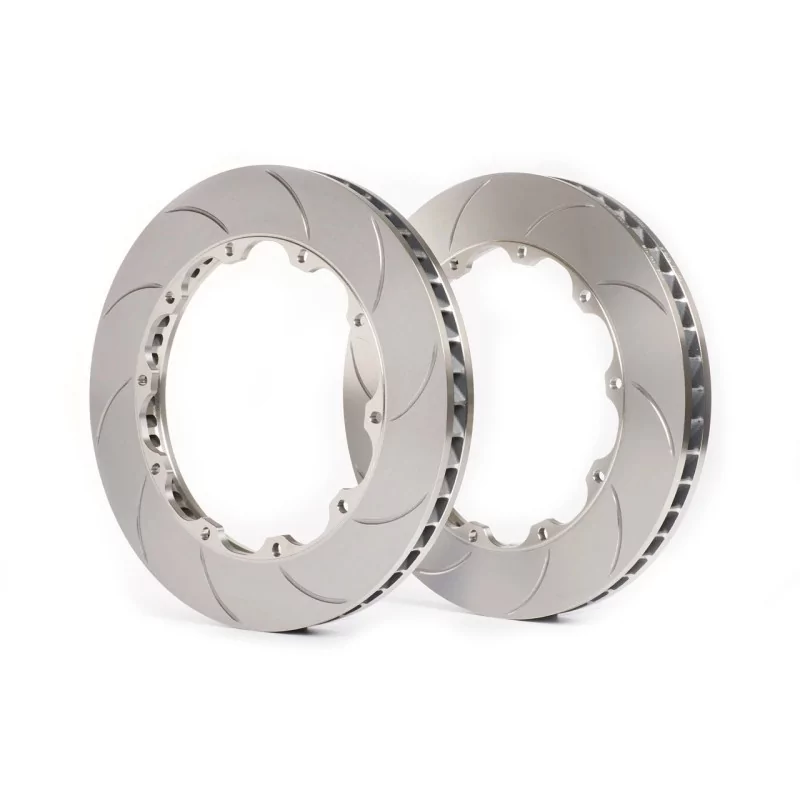

Images for reference only: the photo is a generic Girodisc picture; ring size and pattern vary by application. The technical drawing shows how the ring is fitted to the hat.
No Girodisc hat on the car yet? You need the pair of complete Girodisc A1-171 rotors. To complete the system see the Girodisc brake pads and all Girodisc rotors for Audi.
Availability: usually shipped within 3-4 working days from the European warehouse; codes not in stock are delivered within about 15 days. Contact us for up-to-date availability.
Compatibility:
Audi S3 Quattro Cabriolet 2.0 Turbo (8V) 2014-2020
Audi S3 Quattro 2.0 Turbo (8V) 2012-2020
Audi S3 Quattro Limousine 2.0 Turbo (8V) 2013-2020
Audi S3 2.0 Turbo (8Y) 2020-present
Audi SQ2 2.0 Turbo 2019-2026
Audi TT Quattro Roadster 3.2 (8J9) 2007-2010
Audi TTS Quattro Roadster 2.0 Turbo (8J9) 2008-2014
Audi TT Quattro 3.2 (8J3) 2006-2010
Audi TTS Quattro 2.0 Turbo (8J3) 2008-2014
Audi TT Roadster 2.0 Turbo (FV9/8S9) 2015-2023
Audi TT Quattro 2.0 Turbo (FV9/8S9) 2015-2023
Audi TTS Quattro Roadster 2.0 Turbo (FV9/8S9) 2015-2023
Audi TT 2.0 Turbo (FV3/8S3) 2014-2023
Audi TT Quattro 2.0 Turbo (FV3/8S3) 2014-2023
Audi TTS Quattro 2.0 Turbo (FV3/8S3) 2014-2023
Cupra Cupra Ateca 2.0 Turbo (KH7/KHP) 2018-2026
Cupra Formentor 1.5 Turbo (KM7/KMP) 2020-present
Cupra Formentor 2.0 TD (KM7/KMP) 2021-present
Cupra Formentor 2.0 Turbo (KM7/KMP) 2020-present
Cupra Formentor Hybrid 1.4 Turbo (KM7/KMP) 2021-present
Seat Leon Cupra 2.0 Turbo (5F) 2014-2017
Seat Leon Cupra 2.0 Turbo (5F) 2017-2020
Seat Leon Cupra ST 2.0 Turbo (5F) 2017-2020
Seat Leon Cupra ST 2.0 Turbo (5F) 2014-2017
Seat Leon ST 2.0 TD (4Drive) (5F) 2014-2020
Seat Tarraco 2.0 Turbo (KN2) 2019-present
Seat Tarraco Hybrid 1.4 Turbo (KN2) 2021-present
Seat Tarraco 2.0 TD (KN2) 2018-present
Skoda Kodiaq 1.4 Turbo (NS7) 2016-2019
Skoda Kodiaq 1.5 Turbo (NS7) 2018-present
Skoda Kodiaq 2.0 TD (NS7) 2016-present
Skoda Kodiaq RS 2.0 Twin TD (NS7) 2018-2021
Skoda Kodiaq 2.0 Turbo (NS7) 2016-present
Skoda Kodiaq RS 2.0 Turbo (NS7) 2021-present
Skoda Octavia RS 2.0 TD (5E3) 2013-2020
Skoda Octavia RS 2.0 Turbo (5E3) 2017-2020
Skoda Octavia RS Combi 2.0 TD (5E5) 2013-2020
Skoda Octavia RS Combi 2.0 Turbo (5E5) 2017-2020
Skoda Octavia RS 2.0 Turbo (NX3/NN3) 2020-present
Skoda Octavia Combi RS 2.0 Turbo (NX5) 2020-present
Volkswagen CC 2.0 Turbo (358) 2012-2017
Volkswagen CC 3.6 (358) 2012-2017
Volkswagen Golf GTi 2.0 Turbo (5G) 2013-2017
Volkswagen Golf GTi 2.0 Turbo (5G) 2017-2020
Volkswagen Golf GTi Clubsport 2.0 Turbo (5G) 2016-2019
Volkswagen Golf GTi Clubsport S 2.0 Turbo (5G) 2016-2019
Volkswagen Golf R 2.0 Turbo R (5G) 2013-2020
Volkswagen Golf R Variant 2.0 Turbo (BA5/BV5) 2013-2020
Volkswagen Golf 1.4 Turbo (CD1) 2020-present
Volkswagen Golf GTI 2.0 Turbo (CD1) 2020-present
Volkswagen Golf R 2.0 Turbo (CD1) 2020-present
Volkswagen Passat VR6 3.6 (B7) 2012-2014
Volkswagen Passat VR6 Variant 3.6 (Variant) 2012-2014
Volkswagen Passat 2.0 Turbo (B8) 2015-2023
Volkswagen Passat 2.0 Twin TD (B8) 2014-2020
Volkswagen Passat Variant 2.0 Turbo (B8) 2015-2023
Volkswagen Passat Variant 2.0 Twin TD (B8) 2014-2020
Volkswagen Golf GTE 1.4 Turbo (CD1) 2020-present
Cupra Cupra Leon Hybrid 1.4 Turbo (KL) 2020-present
Cupra Cupra Leon ST Hybrid 1.4 Turbo (KL) 2020-present
Skoda Octavia RS Combi 2.0 Turbo (5E5) 2013-2017
Skoda Octavia RS 2.0 Turbo (5E3) 2013-2017
List supplied by the European Girodisc distributor. If your car is not listed or you have any doubt, contact us before ordering.
