Pair of two-piece floating rotors, complete with aluminium hats, to fit with the standard calipers.
Pair made up of the single part numbers: A1-171SL (left) and A1-171SR (right)
Fits: Audi S3 (8V, 8Y), S3 Limousine (8V), SQ2, TT / TT S (8J9, 8J3, FV9/8S9, FV3/8S3), Cupra Cupra Ateca (KH7/KHP), Formentor / Formentor Hybrid (KM7/KMP), Seat Leon Cupra / Cupra ST / ST (5F), Tarraco / Tarraco Hybrid (KN2) and more versions (see list below)
Before ordering check the compatibility list at the bottom of the page or ask us for advice.
SPENDING OVER €400?
GET FREE SHIPPING ACROSS THE EU*!
At M4Tuning, we reward you: enjoy free shipping across the European Union when your order exceeds €400!
*Some areas excluded: Malta, Canary Islands, Réunion, Ireland, Greece, and Cyprus.
PAY IN EASY INSTALLMENTS WITH KLARNA
Select Klarna at checkout and split your purchase into interest-free payments, with no additional costs.
*Subject to approval by Klarna at the time of checkout.| FOLLOW US ON INSTAGRAM | FOLLOW US ON FACEBOOK |
 |  |
Girodisc A1-171
Pair of two-piece floating front brake rotors
Girodisc is an American company founded in 2003 in California and based since 2007 in Bellingham, Washington, where it designs and builds two-piece floating brake rotors for sports cars, supercars and track cars. The iron castings for the friction rings are poured in the USA and every part is machined and inspected in the Girodisc factory.
The cast iron friction ring has curved internal vanes that pump air outwards and bring temperatures down quickly, and it is joined to the 6061-T6 aluminium hat with floating steel drive pins. The ring can therefore expand freely with heat, self-centres between the pads and resists warping and judder even after many laps. Compared with the original rotor it also reduces unsprung weight.
They are the choice of many enthusiasts who take their car to track days: they replace the original rotors, including factory-fitted Brembo or other brands, and work with the standard calipers. The first purchase is the pair of complete rotors with hats; once the ring is worn, often after more than one season depending on use, only the pair of replacement rings is needed (D1 series for the front, D2 for the rear).
Diameter: 340 mm
Thickness: 30 mm
Minimum thickness: 28 mm
Height: 50 mm
OE rotor diameter: 340 mm
Finish: curved slots
Construction: two-piece floating
Ring material: cast iron
Package contents: 2 complete rotors with hats (left A1-171SL and right A1-171SR)
Pair code: A1-171
Part numbers: A1-171SL, A1-171SR
Replacement rings: D1-171SL, D1-171SR

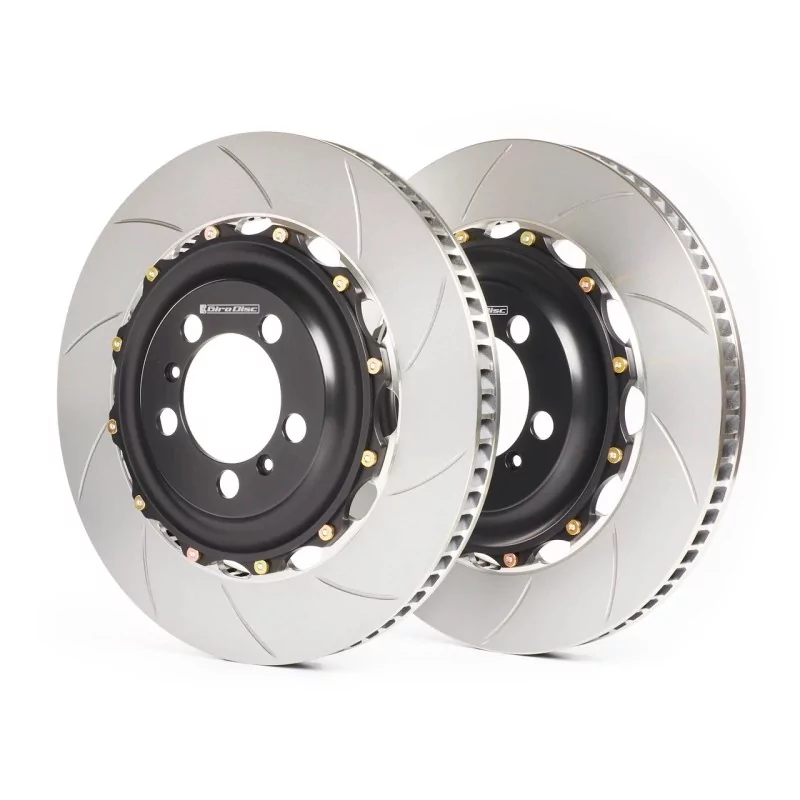

Images for reference only: the photo is a generic Girodisc picture; hat shape, drilling and ring pattern vary by application. The technical drawing shows the correct orientation of the left and right rotors.
When the ring is worn, here is the matching pair of Girodisc D1-171 replacement rings. To complete the system see the Girodisc brake pads and all Girodisc rotors for Audi.
Availability: usually shipped within 3-4 working days from the European warehouse; codes not in stock are delivered within about 15 days. Contact us for up-to-date availability.
Compatibility:
Audi S3 Quattro Cabriolet 2.0 Turbo (8V) 2014-2020
Audi S3 Quattro 2.0 Turbo (8V) 2012-2020
Audi S3 Quattro Limousine 2.0 Turbo (8V) 2013-2020
Audi S3 2.0 Turbo (8Y) 2020-present
Audi SQ2 2.0 Turbo 2019-2026
Audi TT Quattro Roadster 3.2 (8J9) 2007-2010
Audi TTS Quattro Roadster 2.0 Turbo (8J9) 2008-2014
Audi TT Quattro 3.2 (8J3) 2006-2010
Audi TTS Quattro 2.0 Turbo (8J3) 2008-2014
Audi TT Roadster 2.0 Turbo (FV9/8S9) 2015-2023
Audi TT Quattro 2.0 Turbo (FV9/8S9) 2015-2023
Audi TTS Quattro Roadster 2.0 Turbo (FV9/8S9) 2015-2023
Audi TT 2.0 Turbo (FV3/8S3) 2014-2023
Audi TT Quattro 2.0 Turbo (FV3/8S3) 2014-2023
Audi TTS Quattro 2.0 Turbo (FV3/8S3) 2014-2023
Cupra Cupra Ateca 2.0 Turbo (KH7/KHP) 2018-2026
Cupra Formentor 1.5 Turbo (KM7/KMP) 2020-present
Cupra Formentor 2.0 TD (KM7/KMP) 2021-present
Cupra Formentor 2.0 Turbo (KM7/KMP) 2020-present
Cupra Formentor Hybrid 1.4 Turbo (KM7/KMP) 2021-present
Seat Leon Cupra 2.0 Turbo (5F) 2014-2017
Seat Leon Cupra 2.0 Turbo (5F) 2017-2020
Seat Leon Cupra ST 2.0 Turbo (5F) 2017-2020
Seat Leon Cupra ST 2.0 Turbo (5F) 2014-2017
Seat Leon ST 2.0 TD (4Drive) (5F) 2014-2020
Seat Tarraco 2.0 Turbo (KN2) 2019-present
Seat Tarraco Hybrid 1.4 Turbo (KN2) 2021-present
Seat Tarraco 2.0 TD (KN2) 2018-present
Skoda Kodiaq 1.4 Turbo (NS7) 2016-2019
Skoda Kodiaq 1.5 Turbo (NS7) 2018-present
Skoda Kodiaq 2.0 TD (NS7) 2016-present
Skoda Kodiaq RS 2.0 Twin TD (NS7) 2018-2021
Skoda Kodiaq 2.0 Turbo (NS7) 2016-present
Skoda Kodiaq RS 2.0 Turbo (NS7) 2021-present
Skoda Octavia RS 2.0 TD (5E3) 2013-2020
Skoda Octavia RS 2.0 Turbo (5E3) 2017-2020
Skoda Octavia RS Combi 2.0 TD (5E5) 2013-2020
Skoda Octavia RS Combi 2.0 Turbo (5E5) 2017-2020
Skoda Octavia RS 2.0 Turbo (NX3/NN3) 2020-present
Skoda Octavia Combi RS 2.0 Turbo (NX5) 2020-present
Volkswagen CC 2.0 Turbo (358) 2012-2017
Volkswagen CC 3.6 (358) 2012-2017
Volkswagen Golf GTi 2.0 Turbo (5G) 2013-2017
Volkswagen Golf GTi 2.0 Turbo (5G) 2017-2020
Volkswagen Golf GTi Clubsport 2.0 Turbo (5G) 2016-2019
Volkswagen Golf GTi Clubsport S 2.0 Turbo (5G) 2016-2019
Volkswagen Golf R 2.0 Turbo R (5G) 2013-2020
Volkswagen Golf R Variant 2.0 Turbo (BA5/BV5) 2013-2020
Volkswagen Golf 1.4 Turbo (CD1) 2020-present
Volkswagen Golf GTI 2.0 Turbo (CD1) 2020-present
Volkswagen Golf R 2.0 Turbo (CD1) 2020-present
Volkswagen Passat VR6 3.6 (B7) 2012-2014
Volkswagen Passat VR6 Variant 3.6 (Variant) 2012-2014
Volkswagen Passat 2.0 Turbo (B8) 2015-2023
Volkswagen Passat 2.0 Twin TD (B8) 2014-2020
Volkswagen Passat Variant 2.0 Turbo (B8) 2015-2023
Volkswagen Passat Variant 2.0 Twin TD (B8) 2014-2020
Volkswagen Golf GTE 1.4 Turbo (CD1) 2020-present
Cupra Cupra Leon Hybrid 1.4 Turbo (KL) 2020-present
Cupra Cupra Leon ST Hybrid 1.4 Turbo (KL) 2020-present
Skoda Octavia RS Combi 2.0 Turbo (5E5) 2013-2017
Skoda Octavia RS 2.0 Turbo (5E3) 2013-2017
List supplied by the European Girodisc distributor. If your car is not listed or you have any doubt, contact us before ordering.
